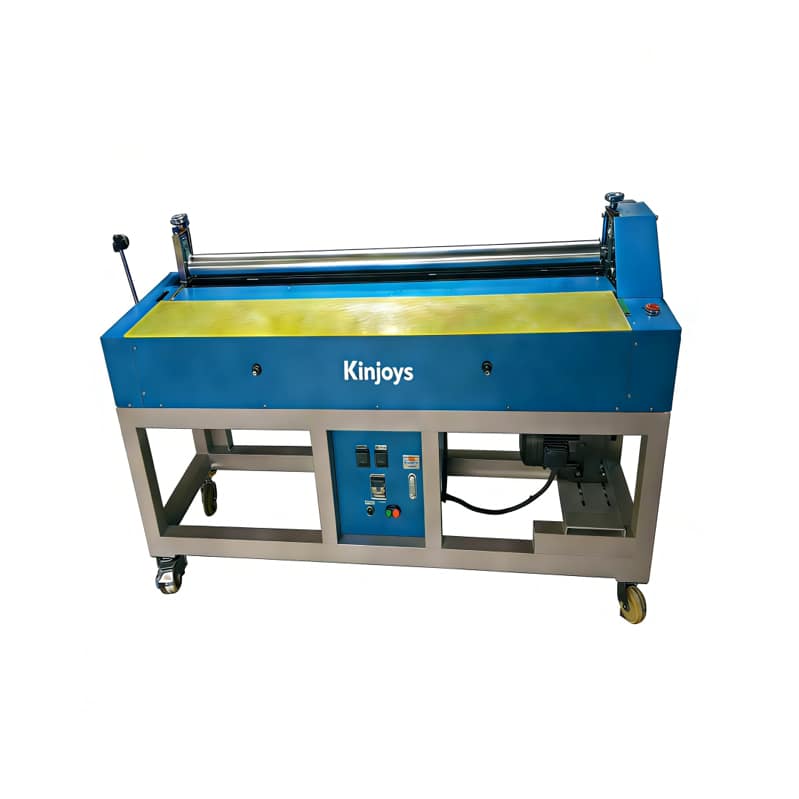

Industrial Capacity: High-Volume Manual Coating
Features
- Designed for heavy-duty industrial environments, this floor-standing model offers increased stability and larger glue reservoirs for continuous operation. It provides an ergonomic working height for operators handling large-format sheets.
- Extended Duty Cycle: Built with heavy-duty motors (up to 180W) and larger heating elements to handle back-to-back production runs.
- Ergonomic Floor Frame: Eliminates the need for a separate workbench; the integrated frame is built to withstand the vibrations of high-speed industrial use.
- Wide Format Excellence: Supporting custom widths up to 2000mm, this machine is the go-to for oversized panels or wide fabric sheets.
- Enhanced Heat Retention: The larger chassis allows for superior insulation of the glue tank, reducing energy consumption during long shifts.
| Available Size | 300, 400, 600, 800mm, 1600mm,1800mm, 2000mm, Custom Size Available |
| Coating Material Width | 300mm:10mm-300mm, 400mm:10mm-400mm, 600mm:10mm-600mm, 800mm:10mm-800mm |
| Voltage | 220V 50/60Hz |
| Power | 300mm:3500W, 400mm:3500W 600mm:5000W,800mm:6000W |
| Temp Control | PID Control |
| Storage Capacity | 300mm:3kg, 400mm:4kg 600mm:8kg, 800mm:10kg |
| Melt Speed | 3 300mm:3kg/hour, 400mm:4kg/hour, 600mm:8kg/hour,, 800mm:10kg/hour, |
| Use Viscosity | 1000-20000 CPS |
| Operating Temp | 0-250°C |
| Weight | 300mm:50kg，400mm:55kg 600mm:80kg，800mm:90kg |
| Dimensions (L*W*H cm) | 300mm:50*34*29,400mm:60*34*29cm 600mm:80*34*29,800mm:100*34*29cm |
| Motor Parameters | 300mm: 90W, 400mm:90W, 600mm:120W, 800mm:180W |
