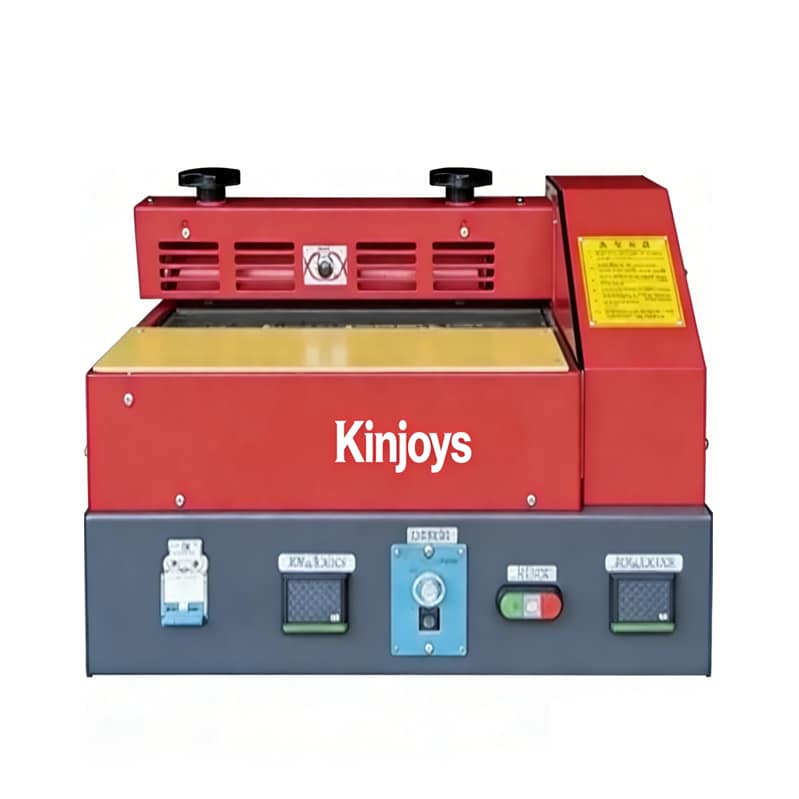

The Benchtop Powerhouse: Automated Material Feeding
Features
- By integrating a specialized Pressure Wheel, this desktop unit transforms into a semi-automated system. It is specifically designed to handle flexible or uneven materials that require consistent downward pressure to ensure 100% glue coverage.
- Adjustable Nip Pressure: The top pressure roller can be finely tuned to accommodate different material thicknesses, ensuring a perfect bond every time.
- High-Friction Silicone Rollers: Equipped with high-quality silicone rubber rollers that provide superior grip and heat resistance for consistent feeding.
- Improved Safety & Efficiency: The pressure wheel acts as an automatic feeder, reducing manual operator contact with the heated glue area.
- Versatile Application: Perfect for footwear, bags, and stationery manufacturing where materials may be soft or slightly irregular.
| Available Size | 300, 400, 600, 800mm, 1600mm,1800mm, 2000mm, Custom Size Available |
| Coating Material Width | 300mm:10mm-300mm, 400mm:10mm-400mm, 600mm:10mm-600mm, 800mm:10mm-800mm |
| Voltage | 220V 50/60Hz |
| Power | 300mm:3500W, 400mm:3500W 600mm:5000W,800mm:6000W |
| Temp Control | PID Control |
| Storage Capacity | 300mm:3kg, 400mm:4kg 600mm:8kg, 800mm:10kg |
| Melt Speed | 3 300mm:3kg/hour, 400mm:4kg/hour, 600mm:8kg/hour,, 800mm:10kg/hour, |
| Use Viscosity | 1000-20000 CPS |
| Operating Temp | 0-250°C |
| Weight | 300mm:50kg，400mm:55kg 600mm:80kg，800mm:90kg |
| Dimensions (L*W*H cm) | 300mm:50*34*29,400mm:60*34*29cm 600mm:80*34*29,800mm:100*34*29cm |
| Motor Parameters | 300mm: 90W, 400mm:90W, 600mm:120W, 800mm:180W |
