Advanced Automation for Smart Manufacturing
Features
This flagship model replaces standard meters with a sophisticated PLC Control System, offering the highest level of flexibility and integration for modern production lines. It is the “best” choice for operations that require complex programming or synchronized data tracking.
- Intelligent Logic Control: The PLC System allows for complex, multi-tasking automation and easier integration with external factory hardware or robotic arms.
- Intuitive Interface: Typically paired with a digital display for simplified formula management, allowing operators to save and recall specific heat and pressure settings for different projects.
- Precision Under Pressure: Maintains a maximum working pressure of 10 MPa, ensuring a strong, consistent bond even when applying thick adhesives to non-porous surfaces.
- Ultimate Versatility: Features the same high-capacity 25 KG/Hour output and 9CC Gear Pump as the PID version, but with the added “brainpower” of programmable logic for variable-speed production.

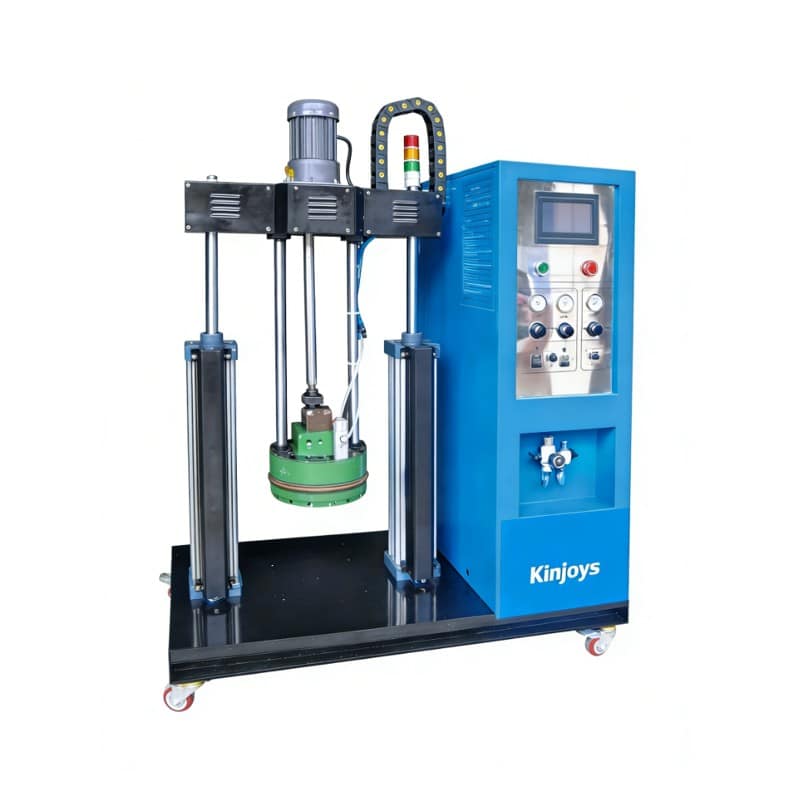

| Model Number | KJ-PLCPUR5L |
| Voltage | 220V 50/60Hz |
| Power | 7500W |
| Temp Control | PLC System |
| Storage Capacity | 25 KG |
| Melt Speed | 25 KG/Hour |
| Operating Temp | 10-200°C |
| Ambient Temp | 0-50°C |
| Max Working Pressure | 10 Mpa |
| Using Air Pressure | 0.3-0.8 Mpa |
| Dimensions (L*W*H cm) | 126 * 66 * 180 |
| Connectable Hoses Port | 1-2 Ports |
| Pump Type | 9CC Gear Pump |
| Motor Params | 400W |
| Thermal Way | K-type |
