Industrial Reliability with Simplified Control
Features
The 5-gallon PID version is a high-capacity powerhouse built for continuous industrial use in woodworking, textiles, and automotive assembly. It bridges the gap between manual batch work and fully automated high-volume production.
- High-Volume Supply: Delivers a maximum glue supply of 25 KG per hour, significantly increasing throughput for larger surface areas like panel wrapping or fabric laminating.
- Enhanced Power: Upgraded with a 400W motor and 380V power supply to handle the heavy-duty demands of larger adhesive volumes.
- Anticipatory Heat Control: The advanced PID algorithm monitors temperature trends to prevent “overshooting,” ensuring the PUR adhesive remains at the perfect viscosity without overheating.
- Standardized Efficiency: Offers a rugged K-Type temperature sensor for long-term durability in high-heat manufacturing environments.

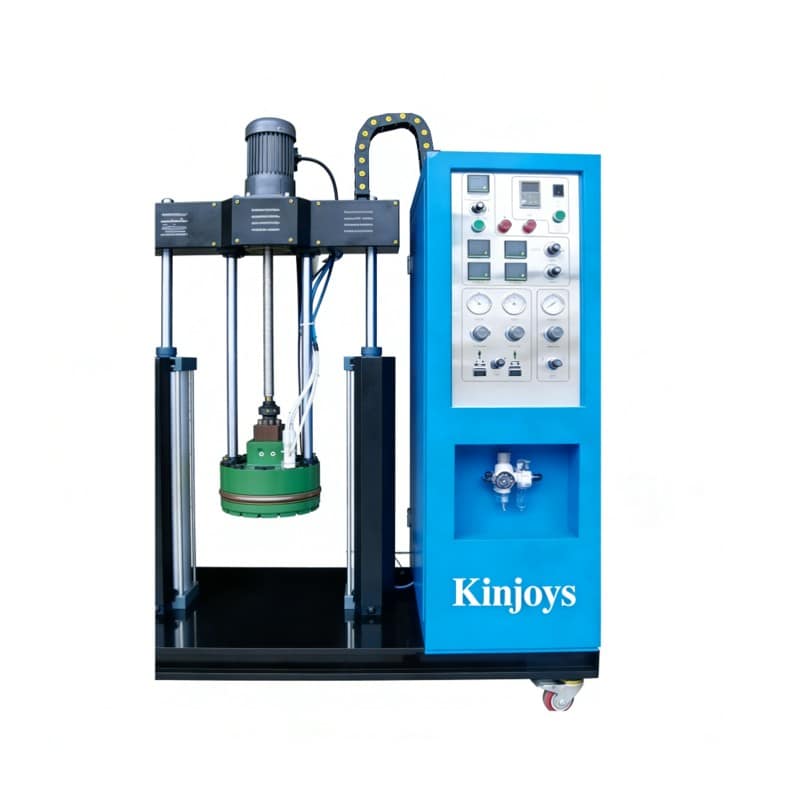

| Model Number | KJ-PIDPUR5L |
| Voltage | 220V 50/60Hz |
| Power | 7500W |
| Temp Control | PID |
| Storage Capacity | 25 KG |
| Melt Speed | 25 KG/Hour |
| Operating Temp | 10-200°C |
| Ambient Temp | 0-50°C |
| Max Working Pressure | 10 Mpa |
| Using Air Pressure | 0.3-0.8 Mpa |
| Dimensions (L*W*H cm) | 126 * 66 * 180 |
| Connectable Hoses Port | 1-2 Ports |
| Pump Type | 9CC Gear Pump |
| Motor Params | 400W |
| Thermal Way | K-type |
